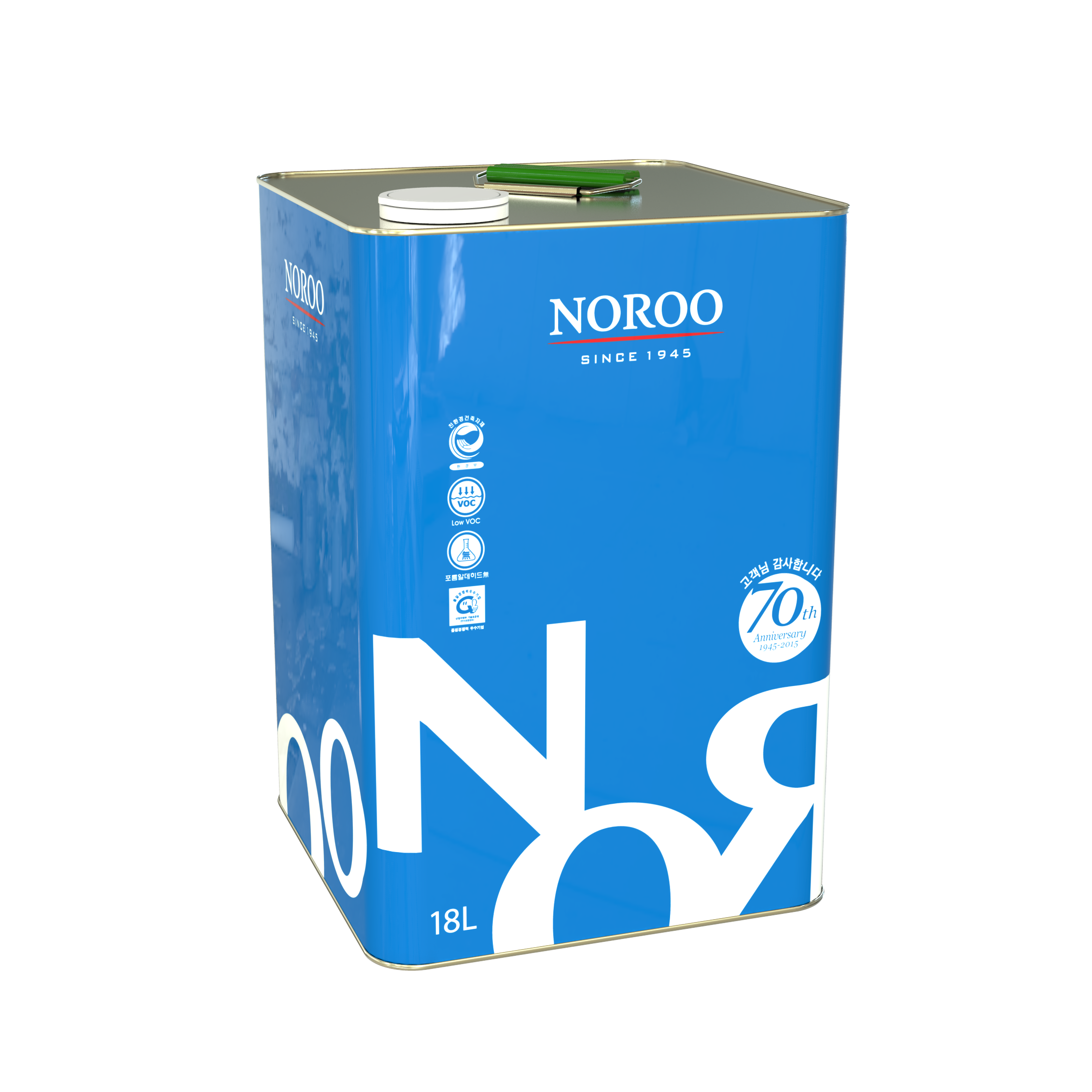

Architecture Paint


Top finishing paint for steel structures such as commercial buildings/residential buildings/public facilities

This paint is a typical ready mixed paint based on drying oil and alkyd resin as the main ingredients with good wettability to the basis material. It has good adhesion, convenient workability, and excellent hiding power, weather resistance and durability. In addition, the elegant gloss is maintained for a long period of time, and it is a paint with excellent protection for the substrate.


Paint type
Long oil alkyd resin / Top coat
Drying time
Drying time
Category 5℃ 20℃ 30℃
Set-to-touch 7 hours 3 hours 2 hours
Dry-through 36 hours 15 hours 12 hours
Time required for re-coating (min.) 48 hours 24 hours 18 hours
Dilution ratio
Volume ratio : 10%
Specific gravity
Approx. 1.1(based on white color)
Theoretical Coverage
8~10㎡/ℓ (2times - 60㎛)
Solid volume ratio
Approx. 55±2%
White, other colors
Thickness of dried film
Mixing ratio
Flash point
At least 38℃
Shelf life
12 months (Dry, cool, and dark place with good ventilation)


Superior adhesion
Adhesion is superior
Film property
Hiding power, weather resistance and durability are excellent.
Gloss retention
The gloss retention rate is excellent.

how to use

Surface treatment
1. New metal plate: Remove dust, oil, etc. from the surface of the substrate using xylene or another proper solvent and then remove rust or forge scale by treating at blasting Sa2. Apply after coating with a corrosive undercoat, KSM-6030 class 1 or an undercoat according to the coating specifications.
2. New wood: Completely remove dust, oil, etc. Please apply sanding treatment if necessary.
3. Repair coating: After completely removing dust, oil, etc., thoroughly remove the paint film that has poor adhesion or is damaged with a wire, apply sanding for the surface of the old film to enhance adhesion.
Coating method
1. Coating can be done by either brush, roller, or airless spray coating.
2. Airless spray coating :
- Tip diameter : 0.43 ~ 0.48 mm
- Injection pressure : 143 atm
- Injection angle : 65˚
(Airless spray data are for reference only, and it is adjusted according to the coating conditions.)
3. Coating conditions : The surface of the substrate must be clean. The surface temperature should be at least 3℃ higher than the dew point to the relative humidity should be less than 85%.
Preceding and follow-up coating
1. Preceding coating : Alkyd system primer
2. Follow-up coating : Alkyd top coat
※ It is a KS mark product corresponding to KSM-6020 class 1 grade 2.
